Sneha45 (Panther) Hammer
This is the DTH hammer made for 4.5” to 5.5” drilling. This hammer can be supplied suit Panther shanks.
| Sl.No | Description | Size | Units |
|---|---|---|---|
| 1 | Hammer Length W/O Bit | 998 | mm |
| 2 | Hammer Out side dia | 97.5 | mm |
| 3 | Hammer Weight | 42 | kg |
| 4 | Hole Size | 115~127 | mm |
| 5 | Wrench Size | 75 A/F | mm |
| 6 | Top Sub Thread Connection | 2 3/8" API Reg Box | |
| 7 | Suitable Bit Sizes | 115~127 | mm |
| 8 | Suitable Shank | Panther |
| Units | Air Consumption | ||
|---|---|---|---|
| psi | 150 | 200 | 300 |
| cfm | 190 | 270 | 330 |

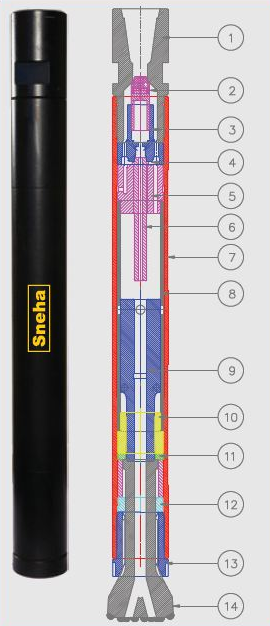

| Sl.No. | Part Name | Part No. | Qty. | Wt.(Kg) | Rec.Spares |
|---|---|---|---|---|---|
| 1 | Top sub | SH45_201 | 1N0. | 7.00 | |
| 2 | Check valve | SH45_202 | " | 0.30 | 1N0. |
| 3 | Top Valve | SH45_203 | " | 1.50 | |
| 4 | Rocker Valve | SH45_204 | " | 0.05 | 1N0. |
| 5 | Bottom Valve | SH45_205 | " | 3.00 | |
| 6 | B.V.Stem | SH45_206 | " | - | |
| 7 | Wear Sleeve | SH45_207 | " | 16.00 | 1N0. |
| 8 | Liner | SH45_208 | " | 3.00 | 1N0. |
| 9 | Piston | SH45_209 | " | 6.00 | 1N0. |
| 10 | Guide Bush | SH45_210 | " | 1.00 | |
| 11 | G.B.Spacer | SH45_211 | " | 0.40 | |
| 12 | Bit Retainer Ring | SH45_212 | " | 0.45 | 1N0. |
| 13 | Front Chuck | SH45_213 | " | 3.00 | 1N0. |
| 14 | Panther Bit | SB02_30 | " | 7.60 | |
| Hammer Assembly | SH45_200 | " | 42.00 |
