InWell Rigs

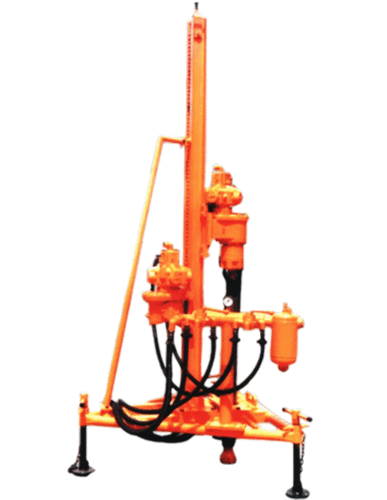

SI100 model, Tripod mounted Top Drive DTH cum rotary drill rig is Capable of drilling in any kind of medium to hard rock formation using DTH, unconsolidated and alluvial formations by rotary method up to a maximum depth of 100 meter, under favourable drilling conditions. The following are the detailed specifications.
| Sl.No | Description | Size |
|---|---|---|
| 1 | Drilling diameter Depth Over burden | DTH drilling Rotary drilling(optional) 4.5"(114mm) 4.5"(114mm) 300feet(100m) 300feet(100m) 7"(178mm) 7"(178mm) |
| 2 | Power | 15HP or higher capacity |
| 3 | Mast overall Length Rotary Head travel Centralize opening | 2700mm 1800mm 8"(203mm)3000kgf/2000kgf |
| 4 | Pull back / Pull down Hoisting speed Torque Rotation speed Max operating pressure Hydraulic Tank capacity | 3000kgf/2000kgf 10mtr/minute 80kg-m 0-100rpm 160Kg/Cm2 50Litres |
| 5 | Centifugal Pump(optional) Max.Flow/Max.Pressure | 600Ipm/8bar |
| 6 | Air compressor Make/Capacity | Air compressor will be mounted on two wheel trolley GLGI/450cfm/150psi |
| 7 | Air line Lubricator Make/Capacity | Air line Lubricator will bw used for DTH hammer lubrication. Spinc/450cfm/150psi |
