Sneha65(DHD 360, SD-6, Digger) Hammer
This is the DTH hammer made for 6.5” to 8” drilling. This hammer can be supplied to suit DHD 360,SD-6 & Sneha 65 (Digger) shanks. Over burden drilling up to 12” can also be done using this tool.
Note:
| Sl.No | Description | Size | Units |
|---|---|---|---|
| 1 | Hammer Length W/O Bit | 980 | mm |
| 2 | Hammer Out side dia | 147.0 | mm |
| 3 | Hammer Weight | 85 | kg |
| 4 | Hole Size | 165~205 | mm |
| 5 | Wrench Size | 90 A/F | mm |
| 6 | Top Sub Thread Connection | 2 7/8" API IF Pin | |
| 7 | Suitable Bit Sizes | 165~205 | mm |
| 8 | Suitable Shank | DHD 360/SD-6/Sneha65(Digger) |
| Units | Air Consumption | ||||
|---|---|---|---|---|---|
| psi | 150 | 200 | 250 | 300 | 350 |
| cfm | 350 | 490 | 650 | 810 | 940 |

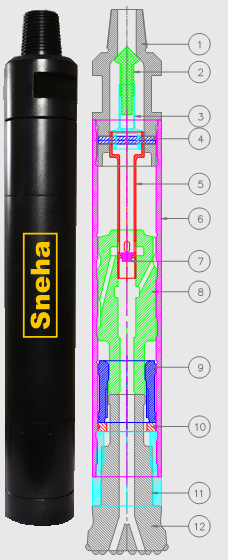

| Sl.No. | Part Name | Part No. | Qty. | Wt.(Kg) | Rec.Spares |
|---|---|---|---|---|---|
| 1 | Top sub | SH65_601 | 1N0. | 19.00 | |
| 2 | Check valve | SH65_602 | " | 0.30 | 1N0. |
| 3 | Air distributor | SH65_603 | " | 0.60 | |
| 4 | Pin | SH65_604 | " | 0.20 | 1N0. |
| 5 | Control Tube | SH65_605 | " | 2.00 | |
| 6 | Wear Sleeve | SH65_606 | " | 30.00 | 1N0. |
| 7 | Choke | SH65_607 | " | 19.00 | |
| 8 | Piston | SH65_608 | " | 19.00 | |
| 9 | Guide Bush | SH65_609 | " | 6.00 | |
| 10 | Bit Retainer Ring | SH65_610 | " | 1.05 | 1N0. |
| 11 | Front Chuck | SH65_611 | " | 6.00 | 1N0. |
| 12 | Sneha65 (Digger) Bit | SB01_65 | " | 23.00 | |
| Hammer Assembly | S065600 | " | 85.00 |
